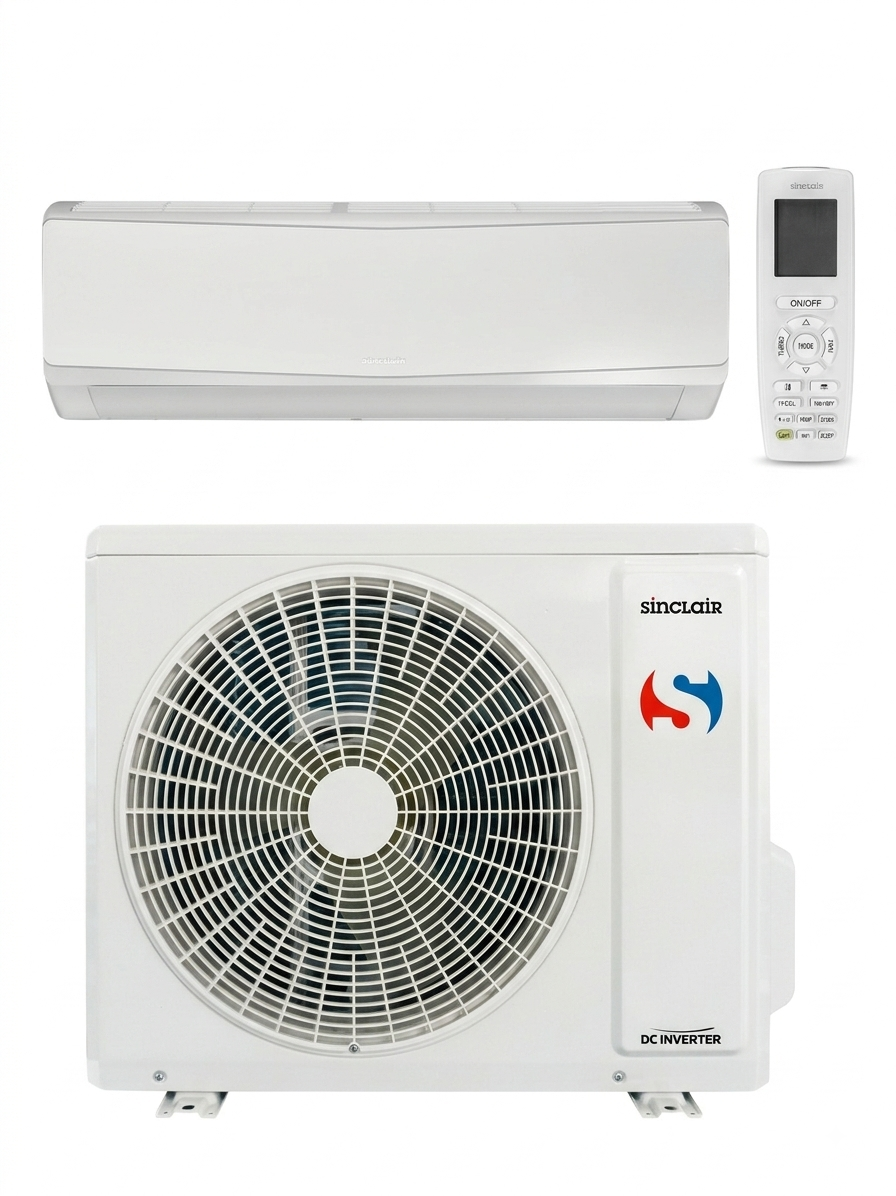

Sinclair Keyon 2.7kW SIH + SOH-09BIK2

Product Overview

• Sinclair Keyon wall-mounted air conditioning system
• 2.7kW cooling capacity
• 2.8kW heating capacity
• R32 refrigerant
• Energy-efficient inverter technology
• A++ energy rating for cooling
• A+ energy rating for heating
• Built-in WiFi control
• Cold Plasma generator for improved air quality
• Catechin and active carbon filters
• I FEEL temperature control
• Quiet operation
• 8°C heating function
• Hidden display
• Heating and cooling for year-round comfort
• Suitable for residential and light commercial applications

What’s Included

• Sinclair Keyon indoor wall-mounted unit
• Sinclair outdoor condenser unit
• Standard professional installation
• Up to 5 metres refrigerant pipework
• Interconnecting cable
• Up to 2 metres of standard trunking
• Outdoor wall brackets or suitable rubber feet for ground installation
• Outdoor unit installation up to 2.4m height
• Refrigerant pipework connection
• Condensate drainage connection
• System testing and commissioning
• F-Gas compliant installation and commissioning
• User demonstration
• Manufacturer documentation

Key Features

Heating & Cooling

The Sinclair Keyon provides both cooling and heating, making it suitable for use throughout the year. The system provides 2.7kW nominal cooling capacity and 2.8kW nominal heating capacity.

Energy Efficient Inverter

The inverter compressor continuously adjusts its output according to the room’s requirements, helping to provide efficient operation and consistent indoor temperatures.

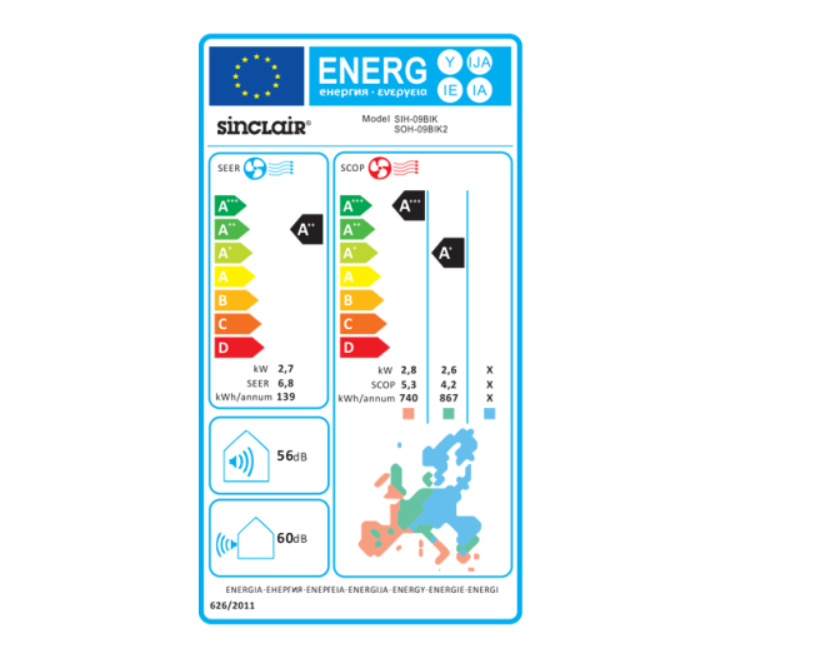

The system achieves A++ energy efficiency in cooling and A+ in heating. Its seasonal efficiency ratings are SEER 6.8 and SCOP 4.2.

Built-in WiFi

Built-in WiFi allows convenient control of the air conditioning system from a compatible smart device, providing greater control over temperature and operation.

Cold Plasma Air Purification

The Keyon incorporates a Cold Plasma generator, together with catechin and active carbon filtration, designed to help improve indoor air quality.

Quiet Operation

The indoor unit is designed for quiet operation, making the Keyon particularly suitable for bedrooms and other areas where low operating noise is important.

The indoor sound pressure level can be as low as approximately 21–23 dB(A) depending on the specification and operating condition.

I FEEL Function

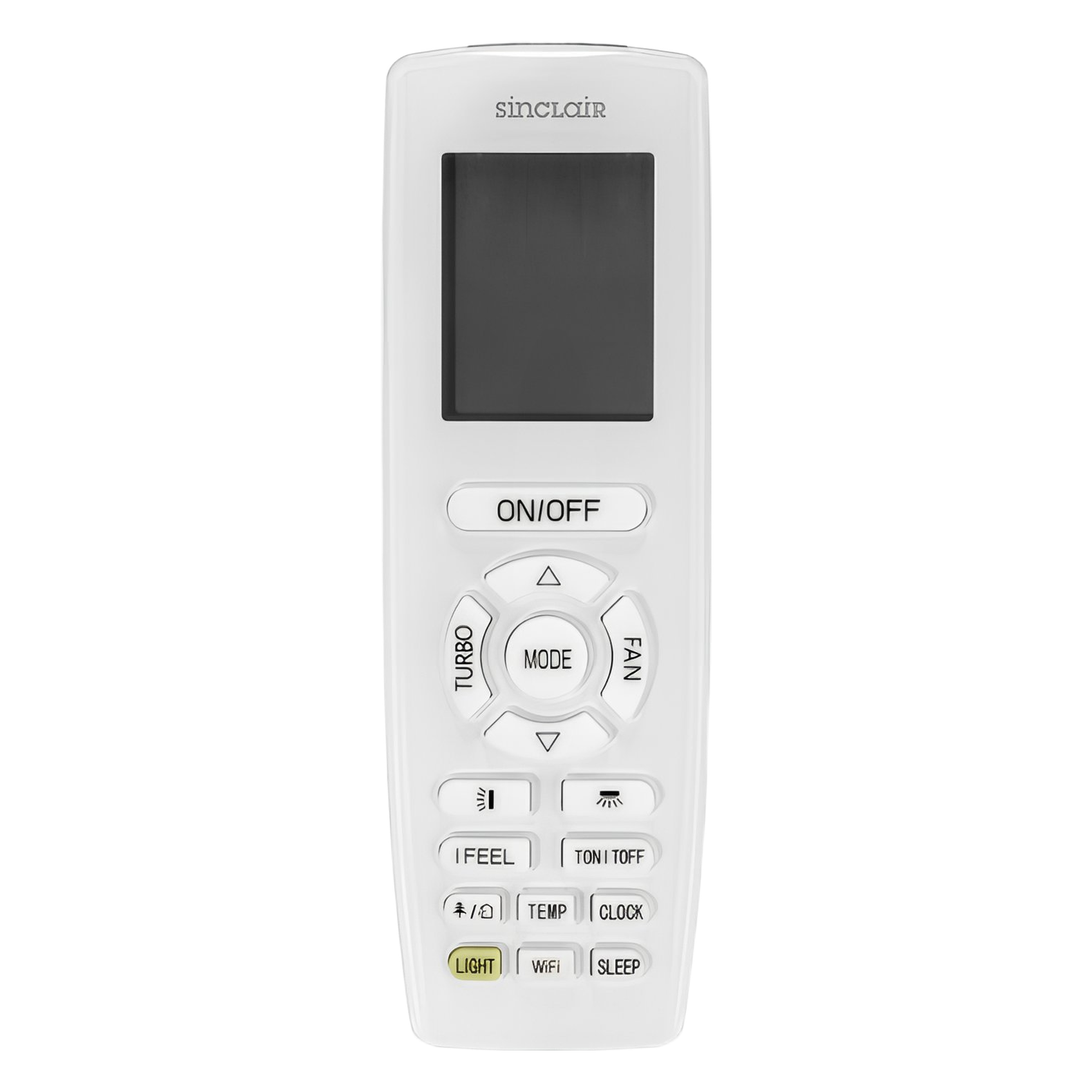

The I FEEL function uses the temperature around the remote controller to help provide more accurate comfort control where the controller is located.

8°C Heating Function

The system includes an 8°C heating function, which can help maintain a low background temperature in suitable applications.

Installation Details

Our standard installation includes:

• Up to 5m refrigerant pipework
• Up to 2m standard trunking
• Interconnecting electrical/control cable
• Outdoor wall bracket or suitable ground supports
• Condensate drainage connection
• System pressure and operational checks
• F-Gas commissioning
• Full system testing
• Customer demonstration

Standard installation is subject to a suitable site survey and installation conditions.

Additional Charges May Apply For

• Refrigerant pipework exceeding 5 metres
• Additional trunking
• Electrical works or electrical upgrades
• Electrical isolator supply where required
• Condensate pumps
• Difficult access
• Scaffolding or specialist access equipment
• Complex installations
• Additional drilling or building works
• Any work outside the standard installation specification

Please contact us before booking if you are unsure whether your installation falls within the standard installation specification.

Technical Specifications

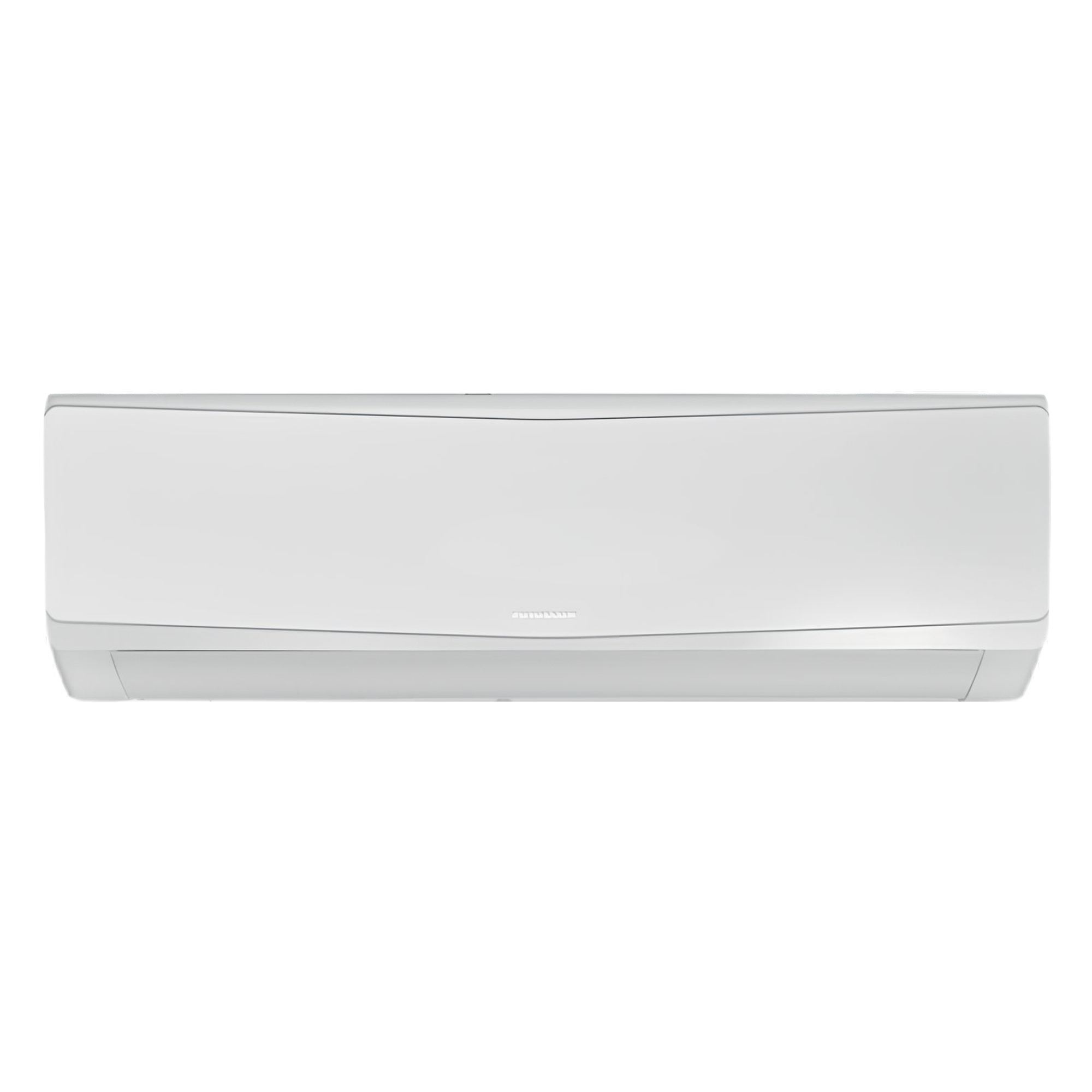

Indoor Unit

Model: SIH-09BIK

Cooling Capacity: 2.7kW
Heating Capacity: 2.8kW
Energy Rating: A++ Cooling / A+ Heating
SEER: 6.8
SCOP: 4.2
Power Supply: 220–240V / 1 Phase / 50Hz
Indoor Unit Dimensions (W × H × D): 770 × 251 × 190mm
Indoor Unit Weight: 8kg

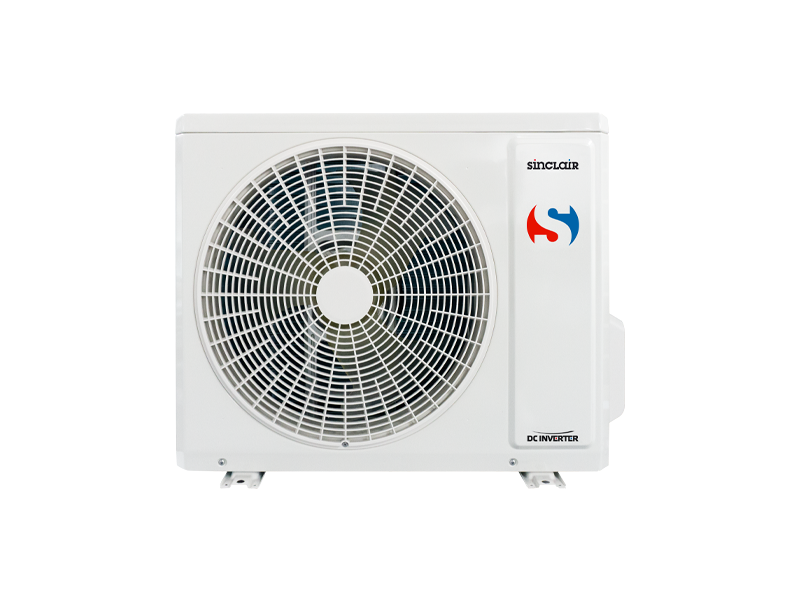

Outdoor Unit

Model: SOH-09BIK2

Outdoor Unit Dimensions (W × H × D): 732 × 555 × 330mm
Outdoor Unit Weight: 24.5kg

Operating Temperature Range

Cooling: -15°C to +43°C
Heating: -15°C to +24°C

Technical specifications are based on Sinclair’s published Keyon documentation.

Ideal For

The Sinclair Keyon 2.7kW is suitable for applications such as:

• Bedrooms
• Small living rooms
• Home offices
• Garden rooms
• Small commercial rooms
• Offices
• Reception rooms
• Residential properties

Actual room suitability depends on room size, insulation, glazing, orientation, occupancy and heat gains. A site assessment may be required to determine the correct capacity.

Booking & Payment

A deposit can be paid to secure your installation.

Once your booking is received, BDS Services Limited will contact you to confirm the installation requirements and arrange a suitable installation date.

The remaining balance is payable upon completion of the installation.

Warranty & Support

The system is supplied with the applicable manufacturer’s warranty, subject to the manufacturer’s warranty terms and conditions.

BDS Services Limited also provides installation workmanship support for our completed installations.

Our team can also provide ongoing servicing and maintenance to help keep your air conditioning system operating efficiently.

Why Choose BDS Services Limited?

BDS Services Limited provides professional air conditioning installation across the West Midlands.

Our services include:

• Domestic air conditioning
• Commercial air conditioning
• Single-split systems
• Multi-split systems
• Air conditioning servicing
• Air conditioning repairs
• Heat pump systems
• F-Gas compliant installation and commissioning

We focus on providing a professional, tidy installation with careful attention to pipework, trunking, drainage and the overall finish of the installation.

Important Information

The advertised price is based on the standard installation specification described above.

Every property is different. Additional costs may apply where the installation requires additional materials, longer pipe runs, specialist access, electrical works or other works outside the standard installation.

If you are unsure which air conditioning capacity is suitable for your room, contact BDS Services Limited before placing your order.
